How to Choose the Right Magnet DC Motor for Your Project?
Choosing the right Magnet DC Motor for your project can be challenging. Various factors come into play, such as the application, power requirements, and size. Understanding these aspects helps ensure optimal performance.
Magnet DC Motors are versatile and efficient. They find use in robotics, automotive, and consumer electronics. Their ability to deliver high torque at low speeds is impressive. But selecting the right one requires careful consideration.
Consider the load and speed requirements carefully. Not all Magnet DC Motors are created equal. Their specifications may not suit every project. Researching different options enhances decision-making. It’s essential to weigh costs against performance needs. Doing so reduces the risk of making a poor choice, which can affect your project negatively.
Identifying the Project Requirements for Magnet DC Motors
When identifying the project requirements for magnet DC motors, it is essential to clarify your goals. What are you trying to achieve? Consider the motor’s speed, torque, and size. This will help narrow down your options. For instance, a high-speed application might require a different motor compared to one that needs high torque. Knowing your performance criteria is crucial.
Next, evaluate the power supply available for your project. Different motors have specific voltage and current needs. Ensure that your power source aligns with these requirements. A mismatch can lead to inefficiency or even damage. Additionally, think about the overall design. The physical space in your project may limit the motor size or shape you can use.
Finally, consider the environment where the motor will operate. Will it face humidity, dust, or high temperatures? These factors impact the motor's longevity and performance. Reflecting on these details can lead to a better choice. Selecting the right magnet DC motor should balance your technical needs with the project’s practical constraints.
Evaluating Performance Specifications of Magnet DC Motors

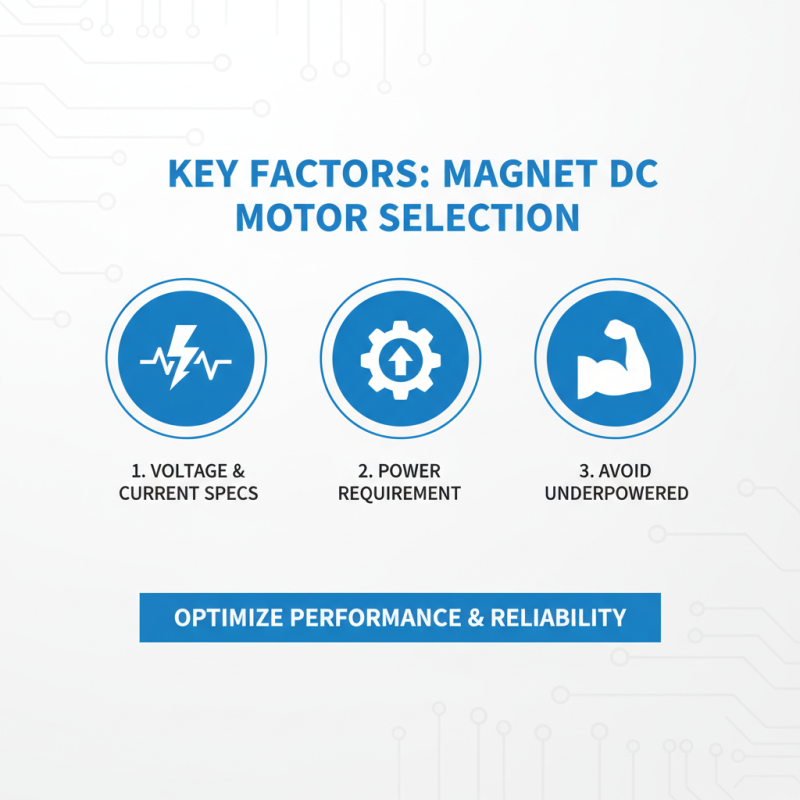

When selecting a magnet DC motor, evaluating performance specifications is crucial. Key aspects include voltage, current, and speed ratings. Each specification directly impacts how the motor operates in your project. A voltage mismatch can lead to insufficient power or overload situations. Current ratings tell you how much power the motor consumes. Ensure your design can accommodate these requirements.
Another important factor is the torque output. Torque measurements indicate how much work the motor can perform. It's essential for applications requiring heavy lifting or precise movements. Look for motors that can provide the necessary torque without overheating. Additionally, efficiency ratings provide insight into energy consumption. A more efficient motor saves energy and reduces heat.
Consider the physical size and weight as well. This can influence the design and portability of your project. Ensure the motor fits within your space constraints. Not all motors are built for the same environment. Some may require additional cooling or protection from dust and moisture. Choosing poorly can lead to failures down the line, prompting the need to reassess design choices.
Selecting the Appropriate Size and Form Factor
When selecting the appropriate size and form factor for a magnet DC motor, several factors come into play. The motor's physical dimensions should fit seamlessly into your project. It's essential to measure the available space accurately. If the motor is too large, it may not fit or could interfere with other components. On the contrary, a motor that's too small may lack the required power and torque.

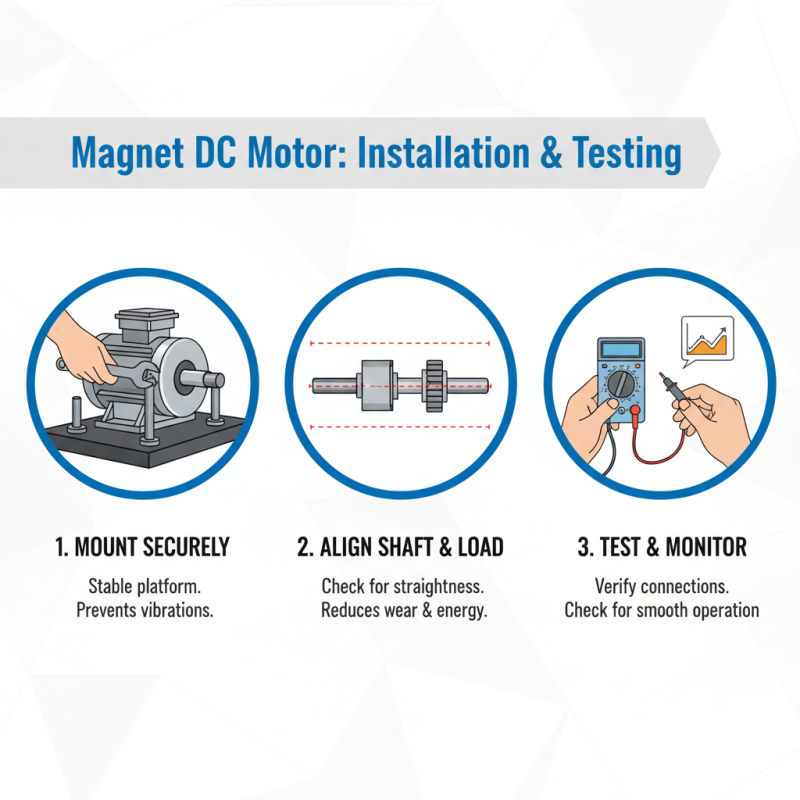

Another critical factor is the mounting options. Different projects may require distinct mounting styles. Some motors allow for easy attachment via brackets, while others may have specific mounting holes. Understanding your project’s requirements helps to avoid frustration later on. Keep in mind that cooling can be an issue. A compact motor might overheat if used in a confined space without proper ventilation.
It’s important to consider the weight of the motor, too. Heavier motors can affect the balance of your assembly. This can lead to stability issues or complications during operation. Therefore, think about the overall weight distribution in your design. Reflection on your choices can lead to insights about efficiency and functionality. It's always beneficial to prototype or model your motor selection before finalizing your design.
How to Choose the Right Magnet DC Motor for Your Project? - Selecting the Appropriate Size and Form Factor
| Motor Type |
Voltage (V) |
Current (A) |
Power (W) |
RPM |
Torque (Nm) |
Size (mm) |
| Brushless DC Motor |
12 |
3.0 |
36 |
3000 |
0.15 |
50 x 40 |
| Permanent Magnet DC Motor |
24 |
2.5 |
60 |
4000 |
0.12 |
70 x 50 |
| Coreless DC Motor |
6 |
1.0 |
6 |
18000 |
0.05 |
30 x 25 |
| Toy DC Motor |
1.5 |
0.2 |
0.3 |
20000 |
0.02 |
20 x 18 |
Budget Considerations and Cost-Effective Options for Motors
When selecting a DC motor, budget remains a crucial factor. Consider the cost of the motor itself and any additional components you may need. Think about your project requirements. A higher price tag does not always guarantee superior performance. In fact, sometimes, a moderately priced motor might fit your needs just fine.
Evaluating the total cost helps. Factor in power consumption and maintenance over the motor's lifespan. Cheaper motors may save you money upfront but lead to higher energy bills later. Explore options that offer durability without overspending. Some components may not require the latest technology. Simple designs often work just as well for basic applications.
It’s wise to compare different suppliers for more options. Look for reviews or insights from other users. Unexpected failures or inefficiencies can arise, irrespective of initial costs. Reflect on these experiences when choosing. A balance between quality and cost-effective options can lead to successful project outcomes.
