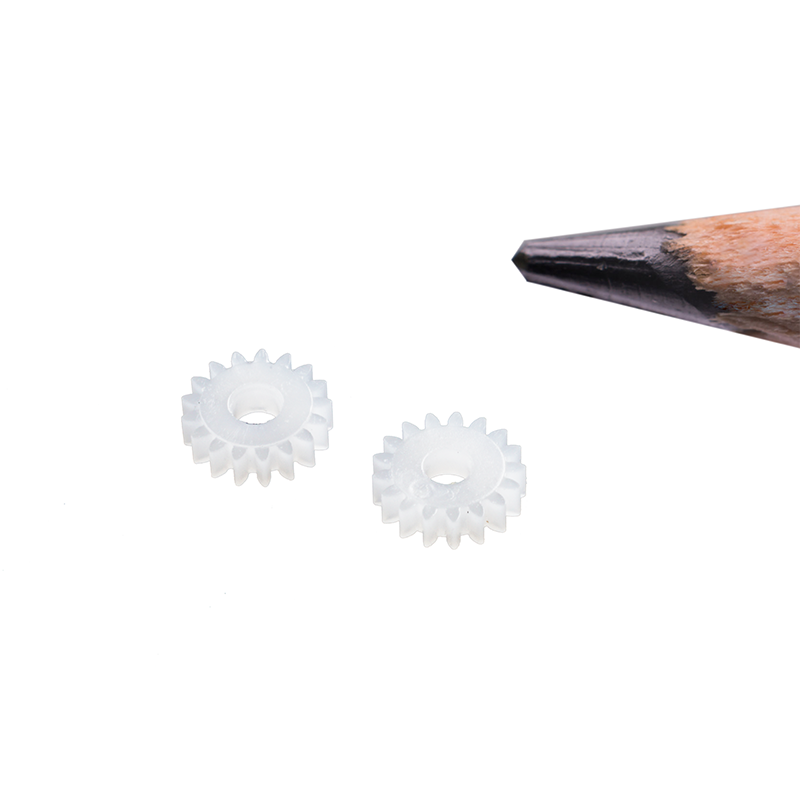

High precision nylon motor transmission gear set (4).png

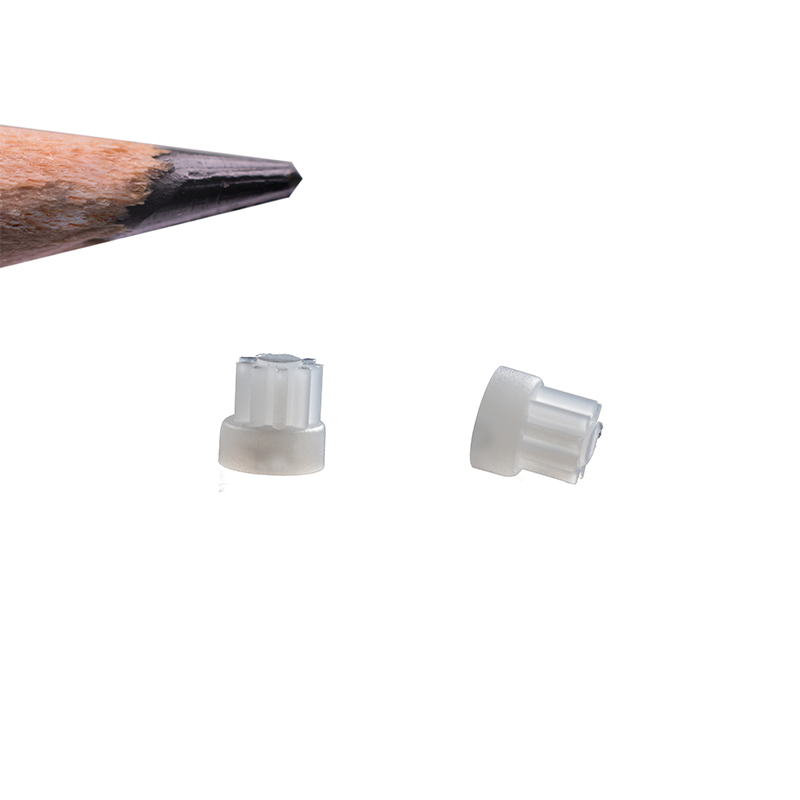

High precision nylon motor transmission gear set (1).png
High precision nylon motor transmission gear set (2).png
High precision nylon motor transmission gear set (3).png

High precision nylon motor transmission gear set

Precision plastic motor gear specially designed for micro motors, made by injection molding with high-strength nylon composite material, featuring 0.05mmlevel machining accuracy. The unique oblique gear design effectively reduces operation noise to below 35 decibels, with a wear resistance coefficient of 0.8 or above supporting a wide temperature range of -20℃ to 80℃ for the working environment. Standardized modulus specifications (0.3-1.5) are compatible with motor models, offering a variety of tooth counts such as 8/16/24, suitable for precision transmission scenarios such as UAV gimbals, smart home motors, devices, etc., with a lifespan of over 500,000 revolutions.

    Contact us
    product Information

    Core Advantages

    Material Innovation: Imported glass fiber reinforced nylon 66 (PA66-GF30) is selected, which improves theural strength by 60% compared to ordinary plastic gears and maintains excellent dimensional stability under continuous high load conditions.
    Precision Process: The mother mold is processed by Japanese Mur machining center, and the tooth profile tolerance of ±0.02mm is realized by Japanese Nissei or Frank injection molding machine, with a smooth meshing ofIN 6 standard and a transmission efficiency breakthrough of 92%.

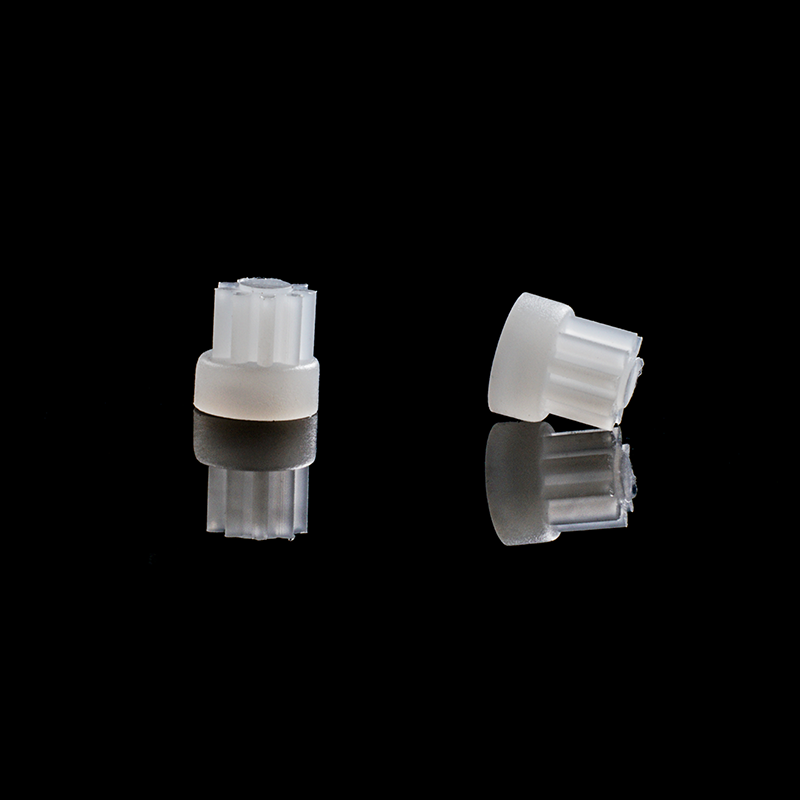

    High precision nylon motor transmission gear set (2)

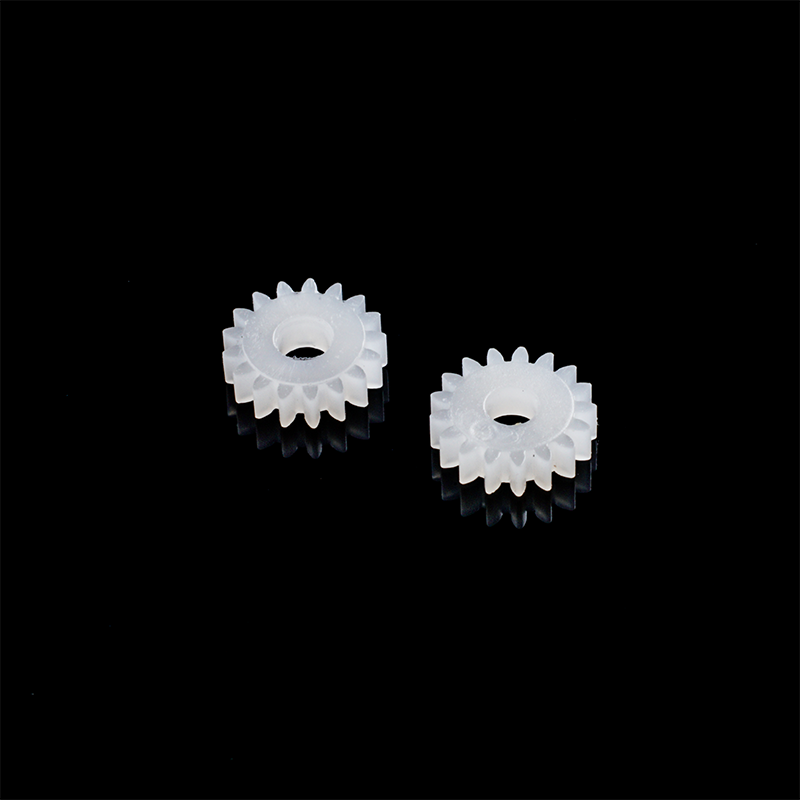

    High precision nylon motor transmission gear set (3)

    Application scenarios

    Smart home: LDS laser radar rotation mechanism for sweeping robot, transmission group for intelligent curtain motor
    Industrial equipment: gearbox for extr of 3D printer, drive unit for indexing disk of automated production line
    Automotive electronics: electric tailgate push rod motor, drive module for charging port cover of new energy

    Technical service

    Support for non-standard customization service, can provide: Profile optimization (involute/circular arc tooth); Dynamic balance test reportISO 1940-1 standard).

    Product Detail Page FAQ

    Order & After-Sales

    Does SANI provide product samples for testing before mass orders?
    Yes. We offer samples for performance and compatibility testing. You can confirm the sample details (parameters, quantity) with our sales team to ensure the product meets your needs.
    What after-sales support is available for these products?
    We provide technical consultation, product maintenance guidance, and troubleshooting support. If there are quality issues within the warranty period, we will assist with replacement or repair promptly.
