24MM Precision planetary reduction gearbox

The 24MM planetary reduction gearbox from Sai Li Transmission adopts a planetary gear system structure with an outer diameter of 24MM, with 12-24VDC voltage, and provides a wide range of 4-1296:1 reduction ratios. The gear material can be selected from P or metal powder metallurgy, with rated power of 0.05-1.5W, and the speed covers 4-1259rpm, with low as low as 20-30dB. It has high torque output (up to 45000gf.cm) and compact design, with a total of 49.6-69.8mm, suitable for smart home, medical equipment, automation equipment and other scenarios. Customized parameters are supported to meet the needs precision transmission.

    Contact us
    product Information

    Core technical parameters

    Core features: High-performance materials: Gears made of POM (plastic version) or metal powder metallurgy (metal version), wear resistance and quietness, with the metal version capable of instantaneous torque up to 60,000gf.cm;
     Precise parameters: Voltage adapt to 12V/24V, speed error ≤5% under rated load, stable torque output, such as 947.2gf.cm output a 4:1 reduction ratio;
    Low noise optimization: Noise controlled within 30dB through tooth profile adjustment and high-precision assembly, suitable for sensitive environments like equipment;
    Broad compatibility: Total length L1 (gearbox) and L (overall) flexibly matched, supporting direct integration with stepper motors, DC motors

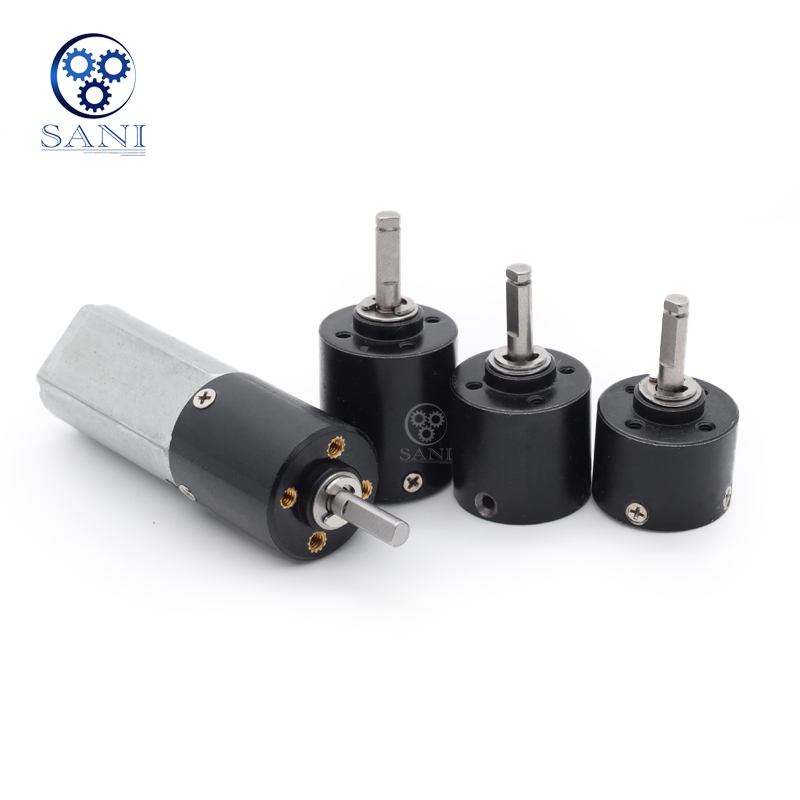

    24mm-1

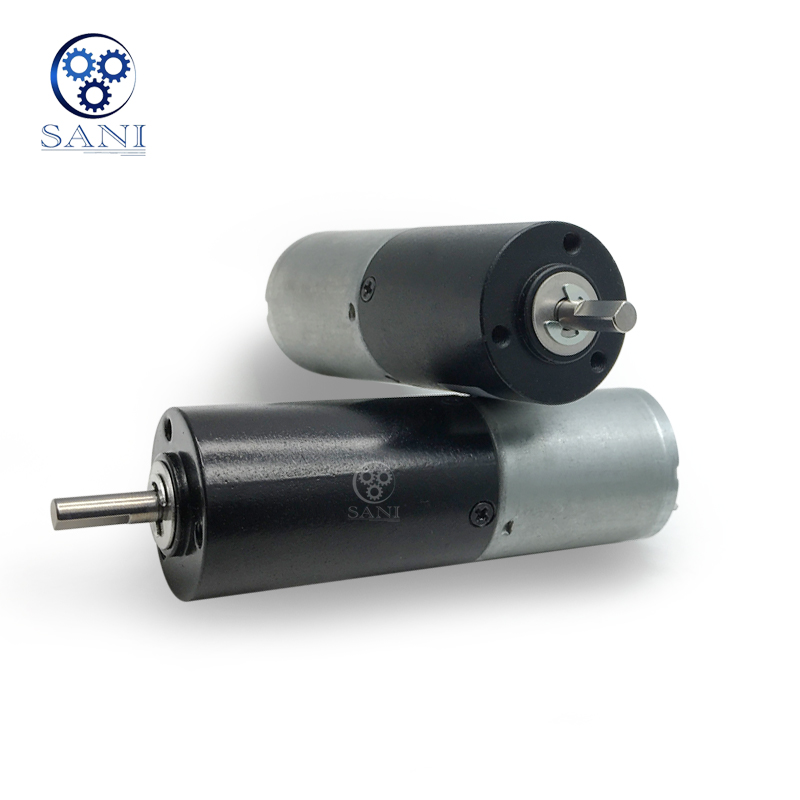

    24mm1

    Application scenario

    Smart home: automatic curtain motor, smart toilet seat lifting drive;
    Industrial automation: AGV steering system, precision instrument transmission;
    Ical equipment: infusion pump, operating bed adjustment mechanism.

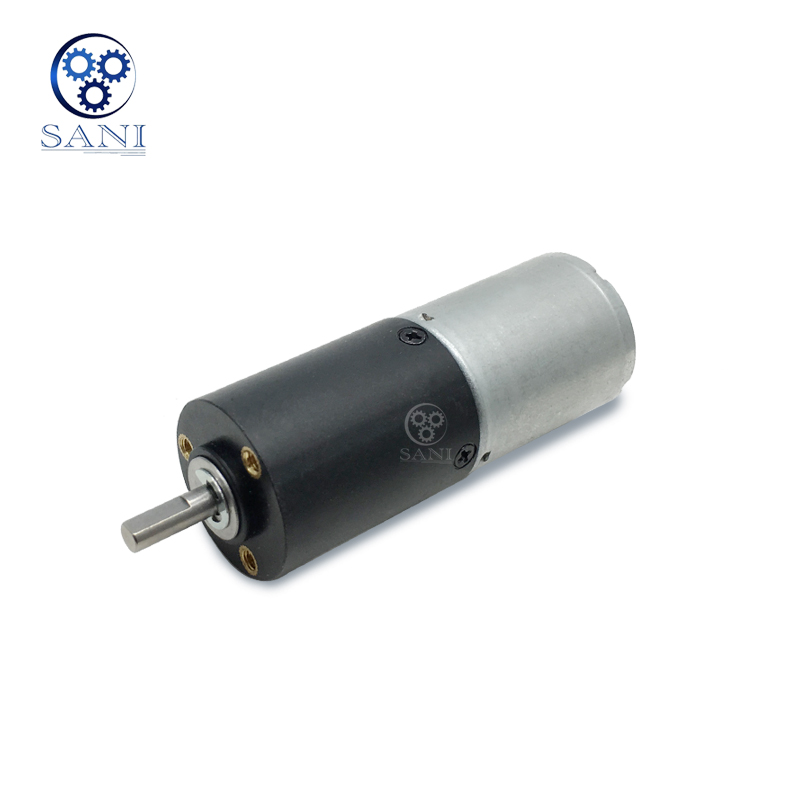

    24mm-2

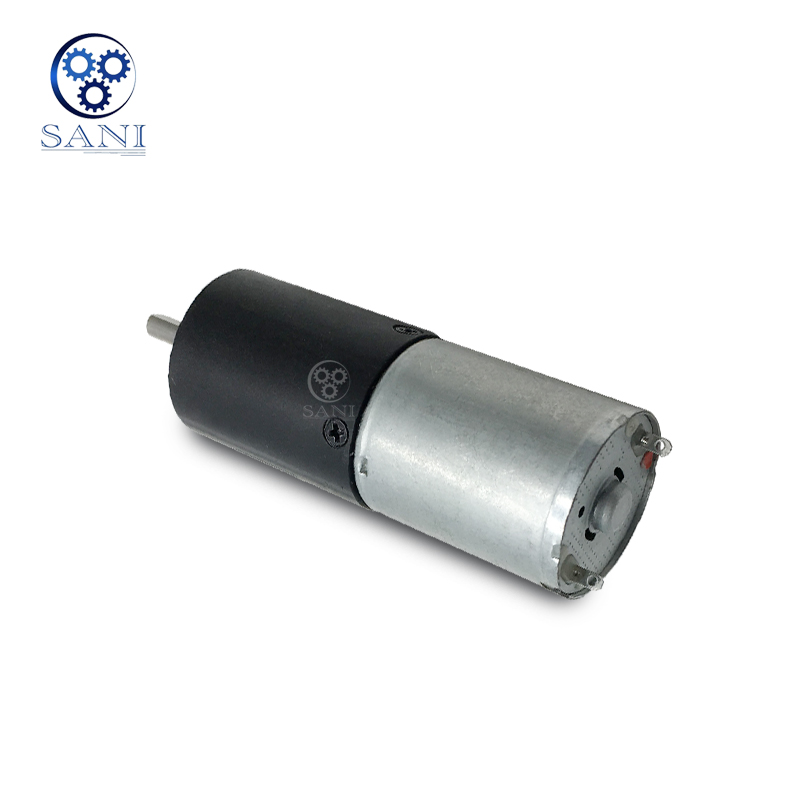

    24mm-3

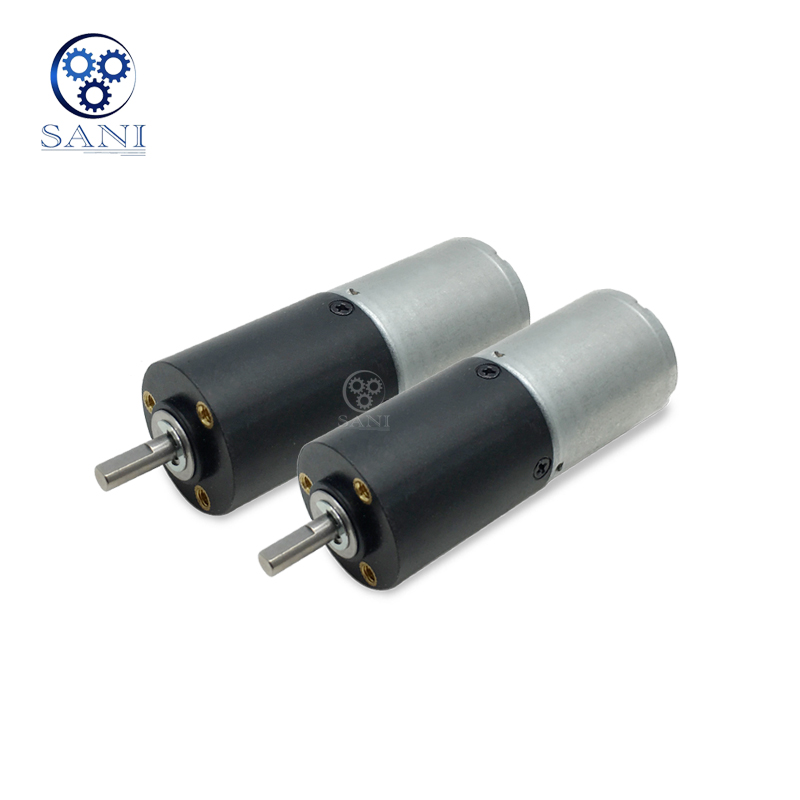

    24mm-4

    Product Detail Page FAQ

    Quality & Performance

    What quality certifications support SANI’s product reliability?
    Our management system complies with IATF 16949:2016 (certificate No.: D462458, valid until Nov 19, 2025), ensuring strict quality control from design to production—suitable for automotive, medical, and high-precision industries.
    How does SANI ensure the precision of gears and gearboxes?
    We use high-precision processing equipment (e.g., AgieChamilles wire-cutting and EDM machines) for mold manufacturing, plus Japanese Osaka gear meshing instruments and OGP plane testers for quality inspection—guaranteeing consistent precision.
    Can the products withstand harsh environmental conditions?
    Yes. We minimize product risks through strict quality management, ensuring reliability even in harsh environments (e.g., high/low temperatures, vibration) for automotive, outdoor security, and industrial scenarios.
